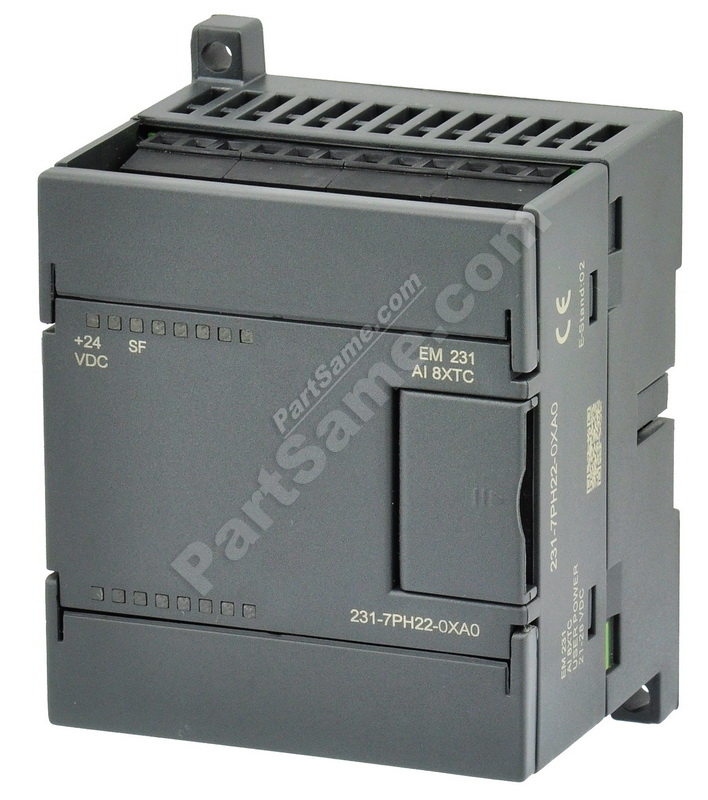

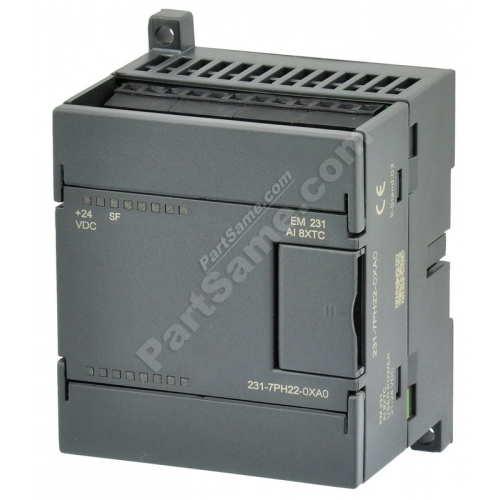

231-7PH22-0XA0

Product Code: 231-7PH22-0XA0
Availability: 1000
Sold: 99

Price: $187.00

Qty:

Model	EM231 8 inputs Thermocouple
Product Description	8AI; Thermocouple temperature measurement modules; Resolution:16bits Optical isolation; high immunity;stable
Technical Specification
From bus current consumption	107mA
From L+ current consumption	60mA
Power loss	2.1W
Number of analog inputs	8
Signal input type·	Floating Thermocouple
Common-mode rejection	>120dB@120V AC
Wire loop resistance(Max)	100 Ω
Module update time	810ms
Data word format	Voltage:+27648~+27648
Input range	Type· E,J,K,N,R,S,T Voltage range:±80mV
Measuring principle	Sigma→delta
Resolution	15+1 Sign bit
Basic error	0.1%FS
Isolation (field to logic)	>3000V
24VDC supply voltage range	20.4~28.8V DC
Dimensions(W x H x D)(mm)	71.2×80×62
Order Number	231-7PH22-0XA0
