Introduction:

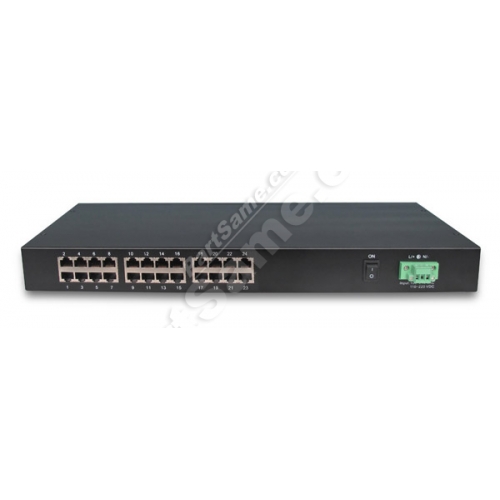

The IES1024 series of industrial Ethernet switches consists of 24-port Ethernet switches that provide an economical solution for your industrial Ethernet connection.
The IES1024 switches have an operating temperature range of -10 to 60掳C, and are designed with low consumption and without fan. The rugged hardware design makes the IES1024 series perfect for ensuring that your Ethernet equipment can withstand the rigors of industrial applications.
Features:
High Performance Network Switching Technology
1. 10/100BaseT(X)(RJ45)
2. Support IEEE802.3/802.3u/802.3x
3. Store and Forward switching process type
4. Support auto negotiation speed, F/H duplex mode, and auto send data control
5. Plug-and-play , auto MDI/MDI-X connection
6. Support 8K MAC address
Industrial Grade Reliability
1. Operating temperature range from -10 to 60掳C
2. Designed without fan
3. IP30, rugged high-strength metal case
4. 19-inch rack mounting
Specifications:
Interface
RJ45 Ports: 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection
LED Indicators: PWR, Link/ACT, 100M
Technology
Standard锛欼EEE802.3銆両EEE802.3x銆両EEE802.3u
Forwarding and Filtrate Rate: 148810pps
transmit type 锛歋tore and Forward switching process type
Support 8K MAC Address
Power
Input Voltage: DC100~300V or AC85~264V
Input Current: 0.1A
Overload Current Protection
Connection: 3 bit terminal block
Mechanical
Dimensions (L脳W脳H): 441.6脳44.6脳206.9mm
Packaging: IP 30 protection, metal case
Installation: 19-inch rack mount
Environmental
Operating Temperature: -10掳C to 60掳C
Storage Temperature : -40掳C to 85掳C
Ambient Relative Humidity: 10% to 95% (non-condensing)
Approvals
EMI锛欶CC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2(ESD), Level 4
EN61000-4-3(RS), Level 4
EN61000-4-4(EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 4
EN61000-4-8,100A/m
EN61000-4-12
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty: 5 years
Approvals: FCC,CE, RoHS approvals
|
