M12 Sensor Junction Box

Product Code: M12 Sensor Junction Box
Availability: 1000
Sold: 99

Price: $85.00

Qty:

M12 Sensor Junction Box

Wire Colors	brown	blue	white	green	yellow	grey	pink	red	blach	violet	green-yellow
Port NO.	1-8	1-8	1	2	3	4	5	6	7	8	1-8
Pin-NO.	1	3	4	4	4	4	4	4	4	4	5
Function	+	-	1/0	1/0	1/0	1/0	1/0	1/0	1/0	1/0

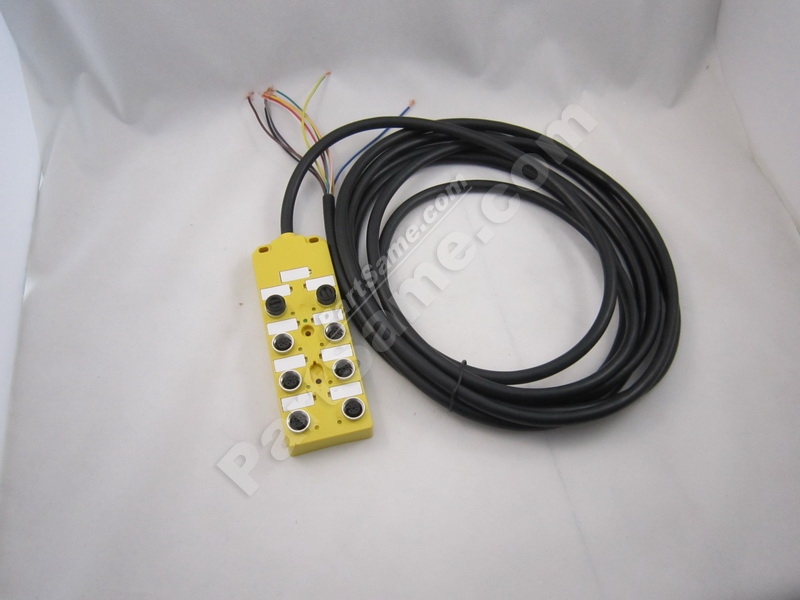

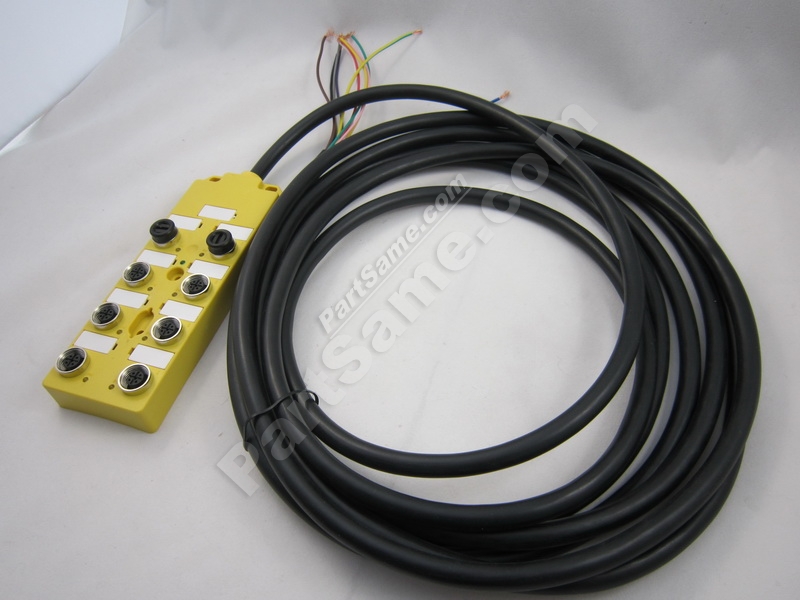

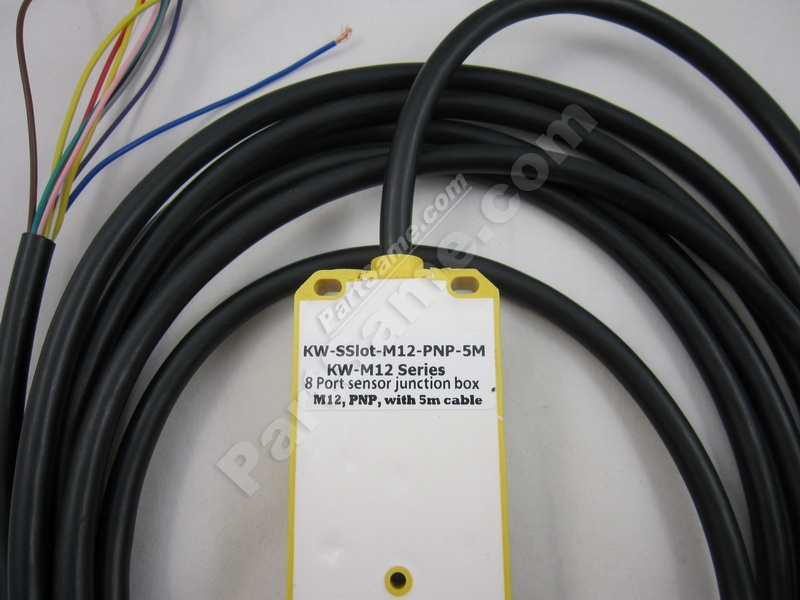

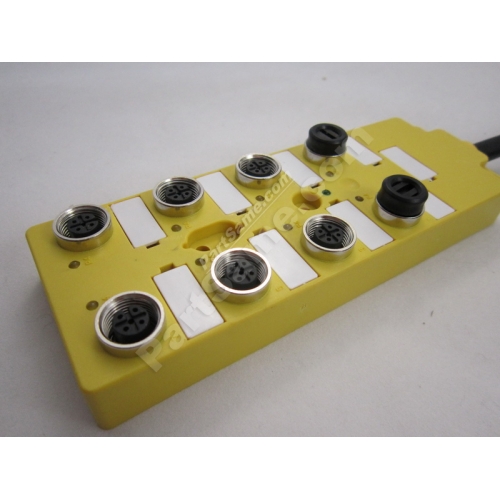

The sensor-M12 Connector,8 Port more road junction box .

Current: 4A
Operating voltage: 60V
Maximum withstand voltage: 1250V
M12 junction box multiple factors explicit materials and products
Anti‐wrong inserted type: A‐standard
Surge voltage category: Ⅱ
Pollution: 3
Protection class: IP67
Contacts material: copper alloy
Material contact surfaces: NIAU
Contacts carrier material: AU
Fixture Body Material: PVC/PA66
Coils Material: Copper Alloy
Sealing material: Epoxy
Connection type: Screw M12
Multi‐core wire cross‐sectional area: 3X0.75‐8X0.34
Cable outer diameter: 8. 1mm
Status Display: Display light yellow, green
Mechanical life: greater than 500 cycles
