FX2N-485-BD+ Isolated RS485 interface board for Mitsubishi FX2N

Product Code: FX2N-485-BD+
Availability: 1000
Sold: 99

Price: $62.89

Qty:

0 reviews | Write a review

Description Reviews (0)

FX2N-485-BD+ Isolated RS485 interface board for Mitsubishi FX2N

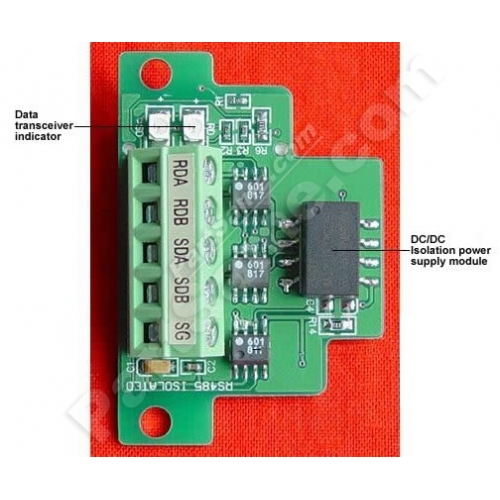

FX2N-485-BD+ Anti-lightning photoelectric Isolated RS485 interface boards for Mitsubishi FX2N PLC

FX2N-485-BD + is a development of our Company which is anti-lightning photoelectric Isolated RS485 interface board for Mitsubishi FX2N PLC series, to replace the Mitsubishi similar non-isolated interface boards FX2N-485-BD, the product was in the original Non-isolated interface boards on the basis of an increase of anti-lightning protection circuits and optoelectronic isolation circuit, the same as the remaining functions and use of all the original non-isolated products, FX2N-485-BD + particularly suitable for use in the following

occasions:
â— interfere with the more serious occasions, such as communication with the converter.
â— RS485 node of the common mode voltage high-damaged communications mouth occasions.
â— communication lines vulnerable to lightning occasions, such as overhead lines, not to wear metal tube lines of communication.
â— need for long-distance signal transmission of occasions.
â— safety specifications of the communication must be isolated occasions, such as wells and underground coal mine communications, flammable and explosive chemicals, and other occasions.

Technical details:
â— isolation voltage: 1000 VDC (up to 3000 VDC, orders required statement)
â— built-in anti-lightning surge protection, repeatability surge capacity: Ipp = 100A (10/700us, 4KV)
Meet standards: ITU-TK20/21, VDE 0433. Â± 15KV ESD (electrostatic) protection
â— baud rate: 0 ~ 115.2 Kbps Adaptive
â— greatest distance: 2,000 meters (9.6 Kbps), 1,200 meters (115.2 Kbps)
â— communication lines: sectional area of 0.3 mm2 over unshielded twisted pair
â— send and receive data with the indicator light
â— temperature: -40 ~ +85 â„ƒ

How to use FX2N-485-BD +:
The same with Isolation of the FX2N-485-BD + interface boards and the use of non-isolated FX2N-485-BD exactly, please refer to manual of Mitsubishi FX2N-485-BD, no repeat them here.

Annex:
Ï†3 self-tapping screws 3
330 Europe, 1 / 4 W terminal resistance 2
120 Europe, 1 / 4 W resistors a terminal
Station No. 1 label version (16 points)
