CP5512,MPI/PPI/FWL/PROFIBUS-DP PCMCIA 32bit communication card for Siemens S7-200/300/400 PLC, replace 6GK1551-2AA00

Product Code: CP5512
Availability: 100
Sold: 99

Price: $365.00

Qty:

0 reviews | Write a review

Description Reviews (0) Related Products (4)

CP5512,MPI/PPI/FWL/PROFIBUS-DP PCMCIA 32bit communication card for Siemens S7-200/300/400 PLC, replace 6GK1551-2AA00

SIMATIC NET communication card for laptop,correspond to Siemens 6GK1551-2AA00,optoelectronic isolated,anti-lightning and surging,suitable for laptop PCMCIA 32bit CardBus slot,is used to achieve PROFIBUS/MPI/PPI/FWL communication connection between PC and SIMATIC,communication speed is 9.6Kbps~12Mbps.After switched over by the transition card,it can be used for desk computer and secondary generation ExpressCard slot laptop.CP5512 +(PCI->PCMCIA) transition card,then can be used for desk computer; CP5512 + (PCMCIA(II)->PCMCIA)transition card,then can be used for secondary generation ExpressCard slot laptop.

If you want to directly buy the CP5512 expresscard,please click this link to get: CP5512-Express

Not made by Siemens,OEM product

Not including MPI extension cable for card communication,if you also need this,please also order it: MPI Cable

Introduction:

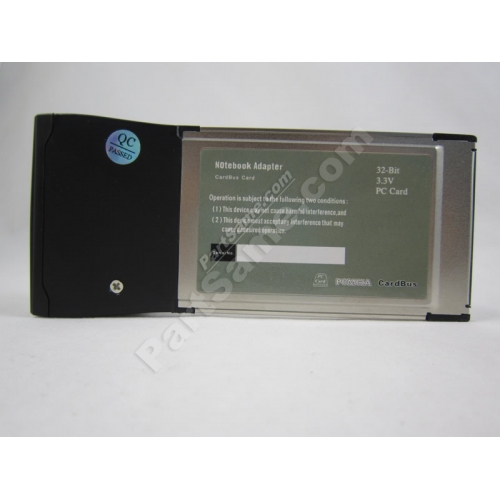

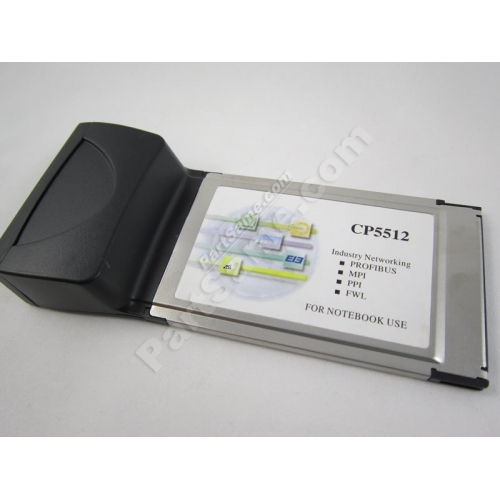

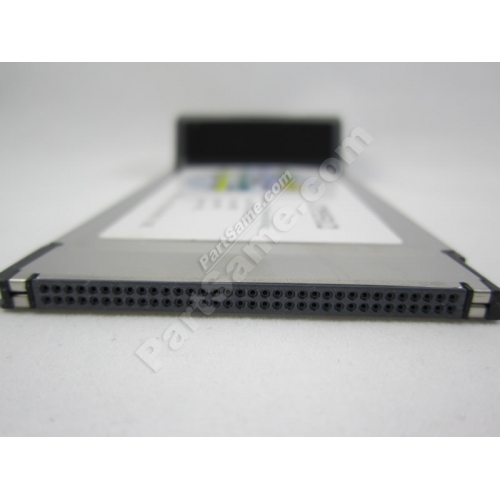

CP5512 is the isolated PROFIBUS/MPI/PPI/FWL communication card specially for laptop, use iCoupler isolators eliminate optocoupler limitations instead of Photoelectric isolation,with small dimension, wide temperature range,and have anti-lightning and surging protective circuit and Overcurrent protection with restoration function on the RS485 interface, all use industrial IC in order to apply to wider temperature range, is used to achieve PROFIBUS/MPI/PPI/FWL communication connection between laptop and SIMATIC.

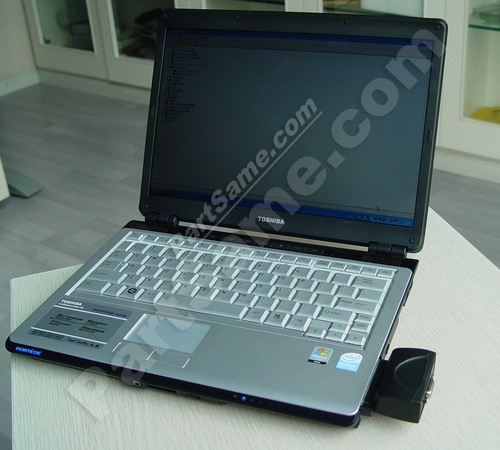

CP5512 insert laptop PCMCIA slot from outside. Its function and Features is the same as Siemens original CP5512(Siemens part nr 6GK1551-2AA00 ),and have the following new characters.

1. Card and RS485 adapter integrative design, small dimension, use conveniently and
have anti-lightning and surging protective circuit on the RS485 interface.

2.Support hot plug, you can plug or unplug the card when the laptop is running. And
card and adapter is integrated, so it’s not like original CP5512 which exist the hidden
trouble that destroy the card when plug or unplug the card from the adapter with current.

3.Support common Express to PCMCIA transition card. You can use it on the Express
slot laptop.

4.Support common PCI to PCMCIA transition card. You can use it on the desk
computer and the function is the same as Siemens original CP5611 and CP5611 A2.

Communication service:
PROFIBUS-DP master station class 1 and 2
PROFIBUS-DP slave with SOFTNET-DP slave
MPI/PPI/FWL communication
S7 communication with SOFTNET-S7
S5-compatible communication (SEND/RECEIVE based on the FDL interface) with SOFTNET-DP or SOFTNET-S7

CP5512 can be used with:
STEP7 V5.2
SOFTNET-S7 V6.1
SOFTNET-DP, SOFTNET-DP slave from V6.1
STEP 7-Micro/WIN from V3.2 SP4
ProTool®, ProTool/Pro® V6.0 SP2
NCM PC from V5.2
SIMATIC PDM V5.2 SP1

Technical Specification:
Transmission rate: 9.6Kbps～12Mbps,the corresponding largest communication distance accord with PROFIBUS standard.

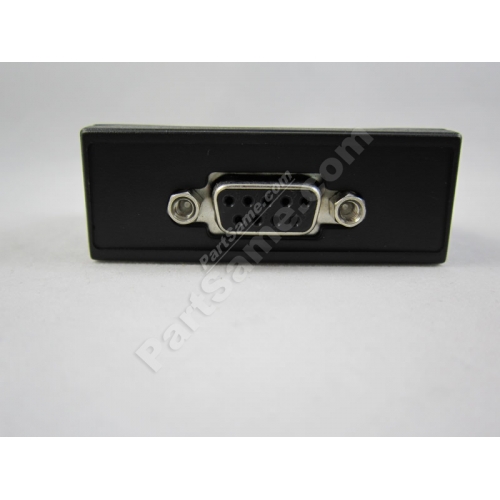

Interface:connect PROFIBUS/MPI/PPI,isolated 9 pin Sub-D connector.
Isolated voltage:1000VDC
Interface protection:have anti-lightning and surging protection(Ipp=100A 10/700us,4KV) on the RS485 interface.ITU-TK20/21,VDE 0433 standard. ±15KV ESD protection. Overcurrent protection with restoration function：RS485 port can withstand up to 60V voltage caused by continuous over-current.
Standard working voltage:3.3 VDC
power：1.0W
working temperature：-20～+75℃
size：length* width * height(mm)：130×54×5（DB9F plug height:22mm）
weight：70g

CP5512

Support hardware of CP5512:
It’s different from PC Adapter and PC Adapter USB, CP5512 supports much more hardwares,such as Siemens S7-200/300/400PLC, PPI/MPI/PROFIBUS interface of touch panel, EM277,ET20 and other hardwares with PROFIBUS/MPI/PPI/FWL interface.

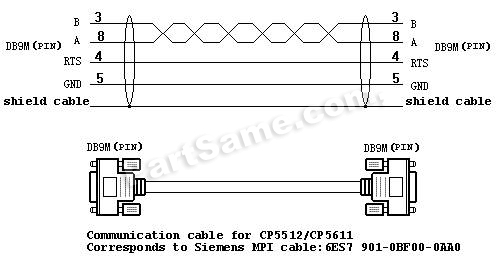

It need PROFIBUS cable or MPI cable(Siemens part nr 6ES7 901-0BF00-0AA0) when CP5512 communicates with fieldbus devices.

Signal definition of CP5512 Interface:

Pin No.	Signal name	Description	Input / Output
1	NC	Unused	-
2	NC	Unused	-
3	B（RXD+/TXD+）	RS485 Signal+	Input/Output
4	RTS_AS	Handshake signal	Input
5	Ground（0V）	Signal Ground	-
6	+5V	5V Power 50mA.max.	Output
7	NC	Unused	-
8	A（RXD-/TXD-）	RS485 Signal-	Input/Output
9	RTS_PG	Request	Output
Shell	PE	Shield	-
