FS-CN226+, isolated CS1W-CN226,RS232 cable for Omron PLC Program

FS-CN226+ photoelectricity-isolated Omron PLC programming cable manual

    FS-CN226 + programming cable is the conversion cable from RS232 to Omron PLC peripherals interface, the model for the corresponding Omron is CS1W-CN226 (non-isolated). The difference between Omron’s CS1W-CN226 and this product is this product has photoelectric isolation and a built-in anti-static, surge and other transient over-voltage protection circuitry, which can be inserted but not charged any damage to PLC communications mouth. This product’s RS232 port can be extended to 100 meters, especially for connecting PLC and touch screen and industrial-site monitoring.

    FS-CN226 + directly connecting to Omron CS / CJ, CQM1H and CPM2C series PLC can avoid the trouble of the use of  FS-CIF02 + requiring CS1W-CN114 adaptor.
For connecting CQM1, CPM1, CPM1A, CPM2A, CPM2AH, C200HS, C200HX/HG/HE and SRM1 series PLC, please choose FS-CIF02 + programming cable.
To the occasions where the communication distance can be over 100 meters of occasions, please choose RS485/422 peripheral products, model: FS-CIF13, the communication distance of the conversion interface is up to 2km.

Technical details:
★ isolation voltage: 1000VDC (up to 3000 VDC, orders required statement)
★ RS232 port has the function of transient voltage suppression, can withstand the power of up to 600 W transient over-voltage, can mine, and anti-static ± 15KV
★ baud rate: 0 ~ 115.2 kbps adaptive
★ RS232-can be extended to 100 meters (baud rate for 9600 bps)

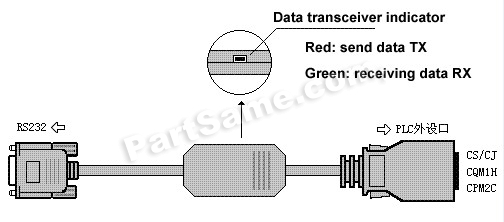

★ with indicator light of  data receive and send
★ work temperature: -20 ~ 75 ℃
★ total cable length is 3m

The structure of products

FS-CN226 +‘s RS232 plugs (DB9F-Block) signal are defined as follows:

Acupuncture

Signal Instruction

1

No use

2

Send data TXD (output from the FS-CN226 +)

3

Receive data RXD (input to the FS-CN226 +)

4

MODEM ready to DSR, short with 6

5

ground (RS232 logical ground)

6

Data terminal ready DTR, short with 4

7

Clear sent CTS, short with 8

8

Demand sent RTS, short with 7

9

No use
