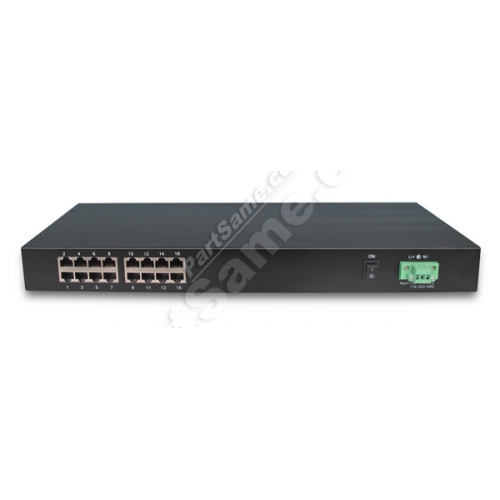

IES1016 16-port Rackmount Industrial Ethernet Switch

Product Code: IES1016
Availability: 1000
Sold: 99

Price: $243.00

Qty:

IES1016 16-port Rackmount Industrial Ethernet Switch

Introduction:
The IES1016 series of industrial Ethernet switches consists of 16-port Ethernet switches that provide an economical solution for your industrial Ethernet connection.
The IES1016 switches have an operating temperature range of -10 to 60°C, and are designed with low consumption and without fan. The rugged hardware design makes the IES1016 series perfect for ensuring that your Ethernet equipment can withstand the rigors of industrial applications.
Features:
High Performance Network Switching Technology
1. 10/100BaseT(X)(RJ45)
2. Support IEEE802.3/802.3u/802.3x
3. Store and Forward switching process type
4. Support auto negotiation speed, F/H duplex mode, and auto send data control
5. Plug-and-play , auto MDI/MDI-X connection
6. Support 8K MAC address
Industrial Grade Reliability
1. Operating temperature range from -10 to 60°C
2. Designed without fan
3. IP30, rugged high-strength metal case
Specifications:
Interface
RJ45 Ports: 10/100BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection
LED Indicators: PWR, Link/ACT, 100M
Technology
Standard：IEEE802.3、IEEE802.3x、IEEE802.3u
Forwarding and Filtrate Rate: 148810pps
transmit type ：Store and Forward switching process type
Support 8K MAC Address
Power
Input Voltage: DC100~300V or AC85~264V
Input Current: 0.1A
Overload Current Protection
Connection: 3 bit terminal block
Mechanical
Dimensions (L×W×H): 441.6×44.6×206.9mm
Packaging: IP 30 protection, metal case
Installation: 19-inch rack mount
Environmental
Operating Temperature: -10°C to 60°C
Storage Temperature : -40°C to 85°C
Ambient Relative Humidity: 10% to 95% (non-condensing)
Approvals
EMI：FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2(ESD), Level 4
           EN61000-4-3(RS), Level 4
           EN61000-4-4(EFT), Level 4
           EN61000-4-5 (Surge), Level 4
           EN61000-4-6 (CS), Level 4
          EN61000-4-8,100A/m
          EN61000-4-12
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty: 5 years
Approvals: FCC,CE, RoHS approvals
